µRack CO2
Ogólne właściwości

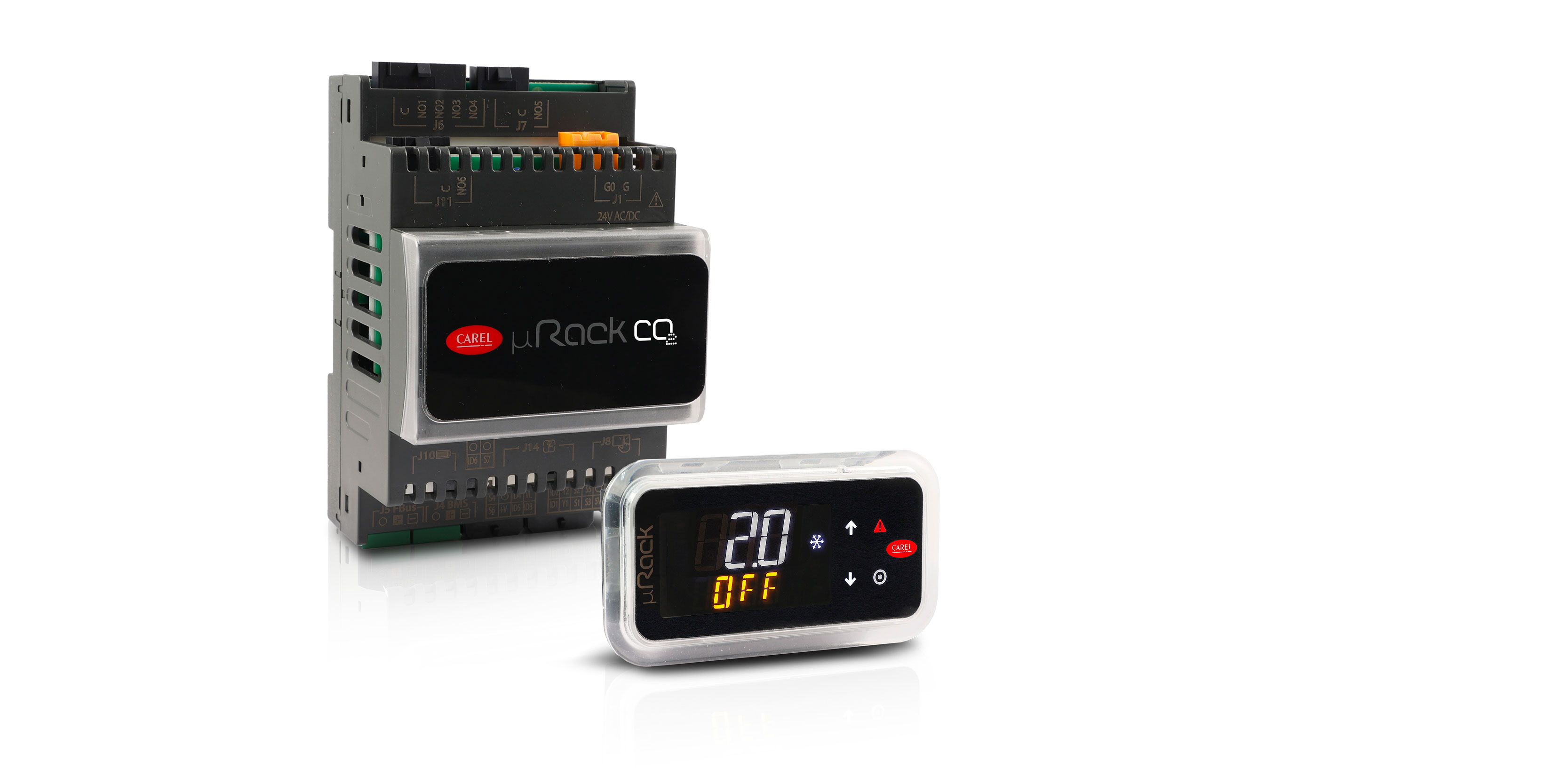

µRack CO2 is CAREL’s compact controller for the management of condensing units and small transcritical CO2 compressor racks.
The main feature of the proposal is NFC and Bluetooth connectivity which, through the Applica app for mobile devices, extends the features of traditional user interfaces, simplifying interaction with the controller by making the functions available directly from a smartphone or tablet.
µRack CO2 can manage the following typical compressor rack configurations:- up to 1 suction line, maximum 4 compressors (modulating, timed, rotation and inverter)
- gas cooler fans (on/off, modulating)
- high pressure valve (HPV) control
- FGV control for liquid receiver pressure
- management of modulating devices
- direct connection to CAREL or third-party supervisory systems (Modbus protocol)
- algorithms for managing system safety and optimising efficiency (Floating Condensing and Floating Suction)
The high flexibility means the controller can be used in stand-alone mode to manage just the HPV and FGV valves (with optional management of the compressors/gas cooler fans).
Completing the proposal is a software suite of useful tools for each stage of the system life cycle: from design and end-of-line configuration/testing, to maintenance in the field.-
Więcej
Complete management of small compressor racks or condensing units
Functions for the control of a small compressor rack unit with up to four compressors (the first modulating), four gas cooler fans (ON/OFF or modulating), complete management of transcritical operation via the algorithm for calculating the optimal pressure.
Simplified interaction
Guided commissioning procedure (wizard), dedicated dashboard for immediate understanding of the unit’s operating conditions, troubleshooting guidelines for alarms, real-time saving and sharing of the rack parameter settings: all directly from a smartphone or tablet.
Versatility
Possibility to configure the controller for complete management of the compressor rack/condensing unit or for the transcritical part only. High degree of configuration flexibility: possibility to change the I/O settings and assign generic functions for the execution of auxiliary actions in addition to the standard logic.
High efficiency for compact applications
Performance optimisation through management of modulating loads (compressors and gas cooler fans). Possibility to integrate field devices through the Fieldbus serial port. Logic for managing the floating suction and condensing pressure set point.
Dokumentacja
Technical
-
Instrukcje obsługi
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +0300026IT Opis μRack - Soluzione per moto-condensanti e centrali frigorifere compatte Język ITA Data 10/06/2024 Wersja 3.0 Kod +0300026EN Opis μRack - Solution for condensing units and compact compressor racks Język ENG Data 10/06/2024 Wersja 3.0 Kod +0300026ES Opis μRack Solución para motocondensadoras y centrales de refrigeración compactas Język SPA Data 10/06/2024 Wersja 3.0 -
Ulotki techniczne
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +0500210IE Opis μRack Soluzione per motocondensanti e centrali frigorifere compatte / Solution for condensing units and compact compressor racks Język ENG ITA Data 11/09/2024 Wersja 1.2 Kod +0500210FD Opis Solution pour les unités à motocondensation et centrales de réfrigération compactes / Lösung für Verflüssigersätze und kompakte Verbundkälte-anlagen Język FRE GER Data 11/09/2024 Wersja 1.2
Commercial
-
Brochure
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod +3000233EN Opis μRack - Solution for condensing units and compact compressor racks Język ENG Data 02/08/2024 Wersja 1.3 Kod +3000233IT Opis μRack - Soluzione per moto-condensanti e centrali frigorifere compatte Język ITA Data 02/08/2024 Wersja 1.3
Images
-
High resolution images
* Entries are ordered by date
Kod Opis Język Data * Wersja Kod PH24LPR301-µRack-CO2-DIN-no-buitin-display Opis CAREL - µRack CO2 - Compressor rack - Food Retail Język ALL Data 29/07/2024 Wersja R.0
